Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: ZHME
  • Model Number: X9500S
  • Power Source: Electric
  • Application: Auto
  • Capacity: 9500lbs(4310kgs)
  • Rated line pull:: 9500 Lbs (4310kgs) single line.
  • Motor:: 6.0 hp /4.4kw,12V DC,8.1 hp /6.0kw,24V DC ,Series wound
  • Gear Train:: 3 stage planetary
  • Gear ratio:: 216: 1
  • Clutch:: Sliding Ring gear
  • Drum size:: 2.5"X9.0"(64mmX224mm)
  • Battery:: 25mm2.72"(1.83m)
  • Rope:: 5/16"X92'(8.3mmX28m)
  • Dimensions:: 23"X6.6"X8.4"( 552mmX168mmX214mm)
  • Mounting bolt pattern: 10"X4.5"(254mmX114.3mm)

Packaging & Delivery

Packaging Details strong export carton with pallet
Packing: 61cm*32cm*32cm
Delivery Time 25days after receipt of 30% total amount as deposit

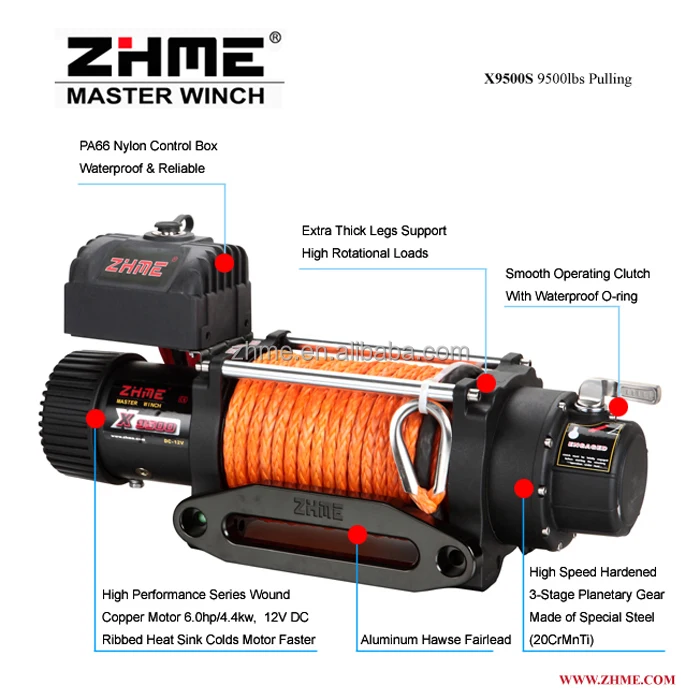

X9500  Winch       Part Number: 221695.1(12V) 221695.1V(24V)

Specifications
Rated line pull:9500 Lbs (4310kgs) single line.
Motor:Series wound
6.0 hp /4.4kw,12V DC
8.1 hp /6.0kw,24V DC
Gear Train:3 stage planetary
Gear ratio:216: 1
Clutch:Sliding Ring gear
Braking action:Automatic in the drum
Battery:Recommended 650 CCA minimum for winching
Battery:25mm2,72(1.83m)
Fairlead:Aluminum hawse fairlead
Rope:ø9.5mm×26m
Drum size:2.5"×9.0"(64mm×224mm)
Dimensions:23"×6.6"×8.4"( 552mm×168mm×214mm)
Mounting bolt pattern10"×4.5"(254mm×114.3mm)
N.W:86 lbs (39kgs)

Line speed and motor current (first layer)
Line pull
Lbs
0
2000
4000
6000
8000
9500
Kgs
0
907
1814
2722
3629
4310
Line speed
FPM
35.4
17.1
13.0
9.79
8.01
7.2
MPM
10.8
5.2
3.98
2.98
2.44
2.2
Motor current
Amps
80
140
200
260
310
350



Professional Racing
Wireless Remote Controller PN: 801521
OPTIONAL

New Waterproof
Super winch support for strength and stablization
Waterproof and high temperature endurable motor for durability and reliability
Water resistand gear box with steel gear for strength
Weather resistant fully integrated contactor
Both mechanical and electrical overload limiter
Time pulling indicator and military aircraft plug
Overload indicator
Low voltage indicator
OPTIONAL

X9000 PN: 221690.1(12V) 221690.1V(24V)
OPTIONAL



How do zhme winch gears work?

Most electric winches on the market today use a planetary gear system, which is similar to the gearing used for the automatic transmission in your vehicle.

It’s basically a set of gears inside a larger gear. The “planetary” gears revolve around a “sun” gear in the center.

The two other main types of gears are spur gears and worm gears, neither of which are widely available in offroad winches.

The spur gear is composed of a pair of gears, one bigger than the other. The bigger gear connects to the motor shaft, and the smaller gear connects to the winch shaft. Spur gears are fast, smooth, and quiet.

The worm gear is composed of a pinion and worm gear. It operates based on a line of contact rather than a point of contact. Worm gears are common for tow trucks but are much slower than spur and planetary gears.
